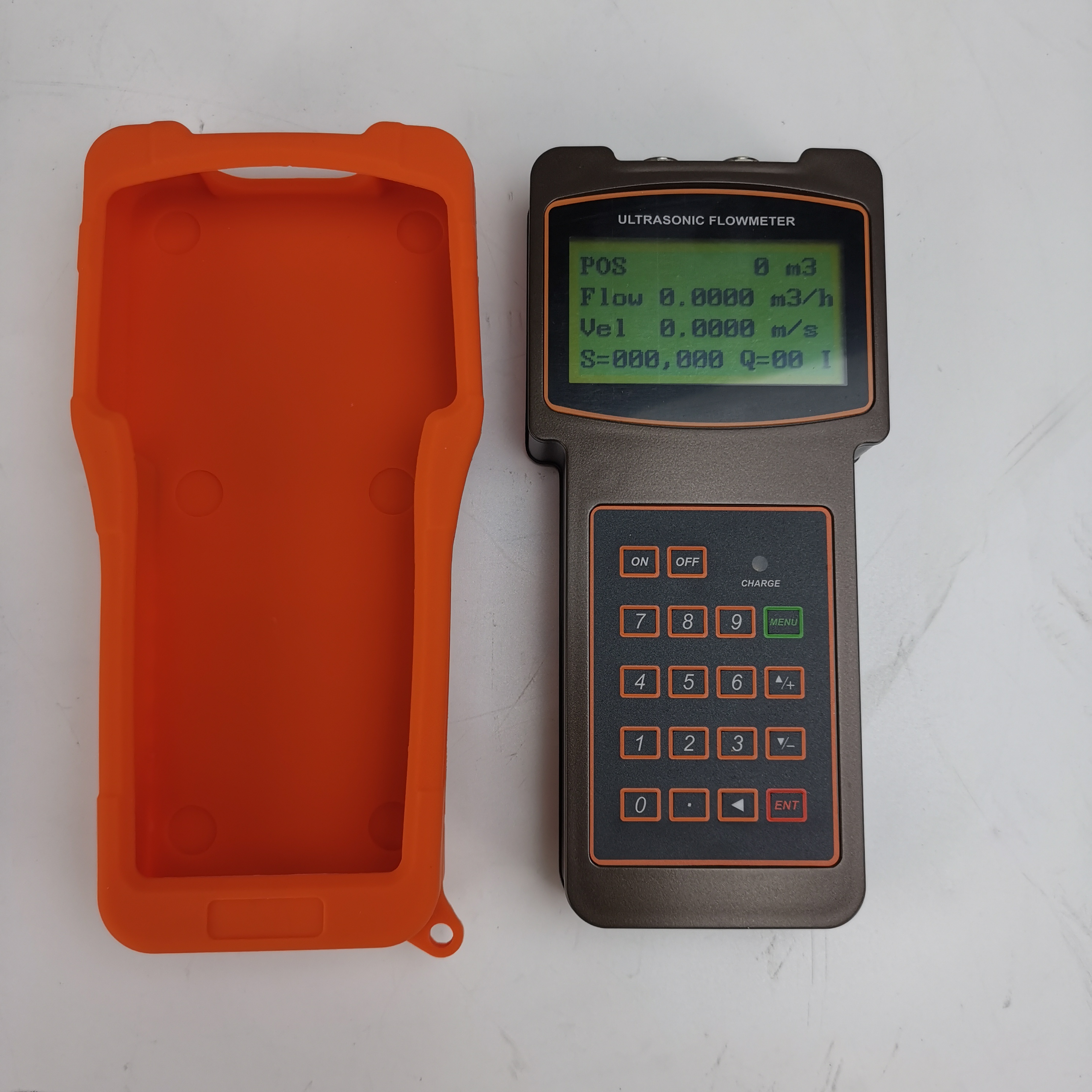

TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter

Name: TUF2000H 15 Inch 1FS Portable Ultrasonic Flow Meter
Brand: Yunyi
Price: 1 USD

Wholesale TUF-2000H 1.5 Inch 1%FS Portable Ultrasonic Flow Meter from china suppliers

Brand Name : Yunyi

Model Number : TUF-2000H

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1pcs per week

Delivery Time : 5-8 work days

Packaging Details : Plywood

Name : TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

Pipe size : DN15--6000

Accuracy : ±1%

Temperature unit : -30-160℃

Flowrate : 0~±7m/s

Display : 2X20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish

Power Consumption : 1. 5W

Power supply : Dc8~36VorAc85~264V (optional)

Dimension : 132*150*85 mm(convertor)

Contact Now

TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

Description TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc

Parameter TUF-2000H ultrasonic portable Digital Water Flow Meter 1.5 inch

Items Performance & Parameter
Convertor	Principle	Transit- time ultrasonic flowmeter
	Accuracy	±1%
	Display	4×16 character LCD with backlight, support the language of Chinese, English and Italy
	Data Interface	Insulate Rs232 serial interface, upgrade the flowmeter software by computer
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
	Pipe Diameter	25~6000mm
	Straight Pipe	Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage; Ultra- pure liquids, etc.
	Temperature	- 30~160℃
	Turbidity	No more than 10000ppm and less bubble
	Flowrate	0~±10m/ s
Working Environment	Temperature	Convertor:- 20~60℃；Flow Transducer:- 30~160℃
Working Environment	Humidity	Convertor: 85% RH；Flow Transducer: Ip67
Power Supply	3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
Power Consumption	1. 5W
Case Material	ABS
Dimension	2009332MM(Convertor)

Types	Spec.	Model	Measurement Range	Temperature	Dimension
Clamp on	Small Size	TS- 2	DN15~ DN100	- 30~ 90℃	45×25×32mm
	Medium Size	TM- 1	DN50~ DN700	- 30~ 90℃	64×39×44mm
	Large Size	TL- 1	DN300~ DN6000	- 30~ 90℃	97×54×53mm
High Temperature Clamp on	Small Size	TS- 2- HT	DN15~ DN100	- 30~ 160℃	45×25×32mm
	Medium Size	TM- 1- HT	DN50~ DN700	- 30~ 160℃	64×39×44mm
	Large Size	TL- 1- HT	DN300~ DN6000	- 30~ 160℃	97×54×53mm
Mounting Bracket Clamp on	Small Size	HS	DN15~ DN100	- 30~ 90℃	318×59×85mm
	Medium Size	HM	DN50~ DN300	- 30~ 90℃	568×59×85mm
	Extended	EB- 1	DN300~ DN700	- 30~ 90℃	188×59×49mm
High Temperature Mounting Bracket Clamp on	Small Size	HS- HT	DN15~ DN100	- 30~ 160℃	318×59×110mm
	Medium Size	HM- HT	DN50~ DN300	- 30~ 160℃	568×59×110mm
	Extended	EB- 1- HT	DN300~ DN700	- 30~ 160℃	188×59×49mm
