M6 Absolute Ceramic Air Pressure Gauge Transmitter 0-10V
Description M6 Absolute Ceramic Air Pressure Gauge Transmitter 0-10V
This product is widely used in petroleum, marine, reservoir, river, chemical, metallurgy, electric power, scientific research and other enterprises and institutions to realize the measurement of fluid pressure, and is suitable for all-weather environments in various occasions.
Parameter M6 Absolute Ceramic Air Pressure Gauge Transmitter 0-10V
| Technical indicators: |
| Media: | Oil, water, gas and compatible with 316L stainless steel |
| Pressure: | Ceramic type:0.1-40Mpa
Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa |
| Overload: | 2 times (10MPa or less); 1.5 times (10MPa or more) |
| Accuracy: | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Nonlinear: | <± 0.2% FS |
| Hysteresis and repeatability: | ≤ ± 0.1% FS |
| Long-term stability: | ≤ ± 0.1% FS / year |
| Zero drift: | ≤ ± 0.02% FS / ℃ |
| Response time: | ≤500ms (standard) |
| Electrical parameters: |
| Output: | Current 2-wire: 4 ~ 20mA
Voltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V
Option:RS 485 ,hart |
| Supply voltage: | DC24V (12 ~ 32VDC, less may contact) |
| Load capacity: | current output: ≤ 500Ω |
| Voltage output: | ≤ 250Ω output impedance |
| Electrical connection: | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
| Materials: |
| Wetted parts: | 316L stainless steel |
| Shell: | 304 |
| Seals: | Viton, optional: EPOM, NBR |
| Diaphragm: | 316L stainless steel |
| Other specifications: |
| Process connection: | M20 × 1.5 external thread (standard) (optional otherconnections) |
| Material: | 316L stainless steel wetted materials; Shell: 304 |
| Protection class: | IP 65 |
| Medium temperature: | -30 ~ 80 ℃ |
| Ambient temperature: | -40 ~ 80 ℃ |
| Storage temperature: | -40 ~ 100 ℃ |
| Earthquake: | 108 RMS (25 ~ 2000HZ) |
| Current Limit: | The maximum current-24mA; voltage-largest 5mA |
| Certification: | CE |
Features M6 Absolute Ceramic Air Pressure Gauge Transmitter 0-10V
1. High accuracy and good stability. In addition to the imported original sensor that has been corrected by laser, the comprehensive temperature drift and nonlinearity of the whole machine within the operating temperature range are finely compensated, so the nonlinearity is small and the temperature stability is good within the operating temperature range.
2. Reliable mechanical protection IP65 and explosion-proof protection Exd ll CT5, which can be used in various harsh environments.
3. It can be used to measure viscous, crystalline and corrosive media.
4. Two-wire system 4mA-20mADC standard current signal output, with strong anti-interference ability with load.
5. Small size, light weight, easy to install, debug, maintain and use.
Applications M6 Absolute Ceramic Air Pressure Gauge Transmitter 0-10V
Ordering Information Pressure Transmitter Price 4-20mA 300 Bar Modbus
| YD31 series Pressure transmitter |
| Pressure range |
| Sensor Type | C | Ceramic |
| S | Silicon |
| Pressure type | A | Gauge |
| B | Absolute |
| C | customer request |
| Output | 1 | 4~20mA 2 wire |
| 2 | 0~5 VDC 3 wire |
| 3 | 0.5-4.5V 3 wire |
| 4 | customer request |
| Accuracy | 1 | 0.1% |
| 2 | 0.2% |
| 3 | 0.5% |
| Thread | 1 | NPT1/2 Male |
| 2 | G1/2Male |
| 3 | NPT1/4 Male |
| 4 | Clamp 50.5mm |
| 5 | customer request |
| Display | 1 | No display |
| 2 | LCD |
| 3 | LED |
| Electric Connection | 1 | Hirschman |
| 2 | Direct wire |
| 3 | M20 Aviation plug |
| 4 | 2088 housing |
| Using Temperature | 1 | Normal |
| 2 | 180C |
| 3 | 250C |
| 4 | customer request |
Product Tags:
|
|

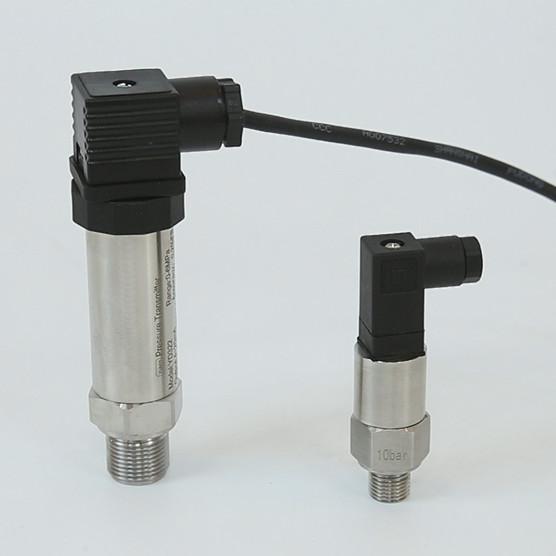

M6 Absolute Ceramic Air Pressure Transducer Sensor 10V Images
|
